LRC4 - next generation of SECU-TECH GmbH overspill prevention and overfill protection
Find out more about all the advantages of the new LRC4 and the enormous range of possible uses to protect against accidents, pollution and environmental damage.
Deadman and/or Easy Deadman configurable
Deadman time is configurable (e.g.: 30 sec.; 1min, 2min, 4min,...)
ATEX hand-held transmitter with ATEX battery
EMERGENCY stop possible at any time
Additional remote control functions (e.g. speed change,...)
Acoustic and visual warning on the hand-held transmitter (when the dead man's time has expired)
We welcome our new partner company "Tank Gauging System Italy".
During his visit to Leobersdorf, Mr. Marco Paradiso was welcomed by Secu-Tech Product Manager Manuel Kriz and Sales & Quality Management Msc Daniela Schachl and informed about our product range.
Visit us in Salzburg. We look forward to welcoming you to the international meeting.
The tamper-proof control box for tankers includes a control unit that is used to transmit control signals to solenoid valves. These solenoid valves switch the drain valves of a tank. Sensors are assigned to the floor and collector valves, which record the actual switching status of the valves. The control unit compares the pressure switch signals with the control signals and detects any discrepancies. If this occurs, an event signal is issued.
Tank truck monitoring:
Highly accurate, continuous level measurement (product and water)
Programmable alarm messages
Local display + truck monitoring with email alerts
Local display without truck monitoring with local alarms
Graphics, statistics, historical data
Configuration changes can be migrated remotely
Data integration into existing systems possible.
Thermal level sensor - overfill protection in the Ex area. The thermal limit switch (with ATEX approval) protects storage tanks with potentially explosive liquids from overfilling. The maintenance-free thermal level sensor can be easily installed in all tanks. Fast and precise, reliable, durable.
During his visit, Mr. Biel "Product Manager at Fafnir Hamburg" was able to find out about the newest product from Secu-Tech: The SECU Trans – Electronic Metering System for Tanker Trucks.
Next to the importance that product mix into compartments of
tanker-trucks and product mix as well as overfill into fuel stations
need to be avoided, the control of the product during transport, too
be sure, that the exact amount and quality of what has being loaded
at the depot arrives at the fuel station, becomes more and more
important. Combined with a comprehensive data-management
information of the complete logistic chain is provided in real-time
and location for mineral-oil companies and hauliers.
Level Gauging in Tanker-Trucks and for other mobile Applications with Data Transfer
Complete system for Level Gauging with Data Transfer for Tanker-Trucks
The system measures the level and the temperature of the product high accurate and continuously and sends this to the Tank Monitoring Data Management Program for analyses, evaluation and information for the customer, including high- and low-level alarms as well as alarms on unusual losses (theft control).
Combined with GPS- and Geo-Fence, tour tracking and route plannings are possible.
HiSolutions AG confirms the successful implementation of a penetration test
of the IT system "FortiGate 50E" from Security & Electronic Technologies GmbH im
November 2020. The objectives of the security review were, the identification of
Vulnerabilities as well as the examination of unauthorized access possibilities.
Find out how Secu-Tech GmbH can support you in your efforts to use your tanker truck logistics efficiently and how your fleet can be controlled all time.
Security & Electronic Technologies GmbH (SECU-TECH) is a global supplier for systems and solutions for safe and efficient loading/unloading liquid products and fuel distribution focusing on wireless deadman systems, electronic Overfill Prevention Systems, Cross-Fill-Prevention Systems, SPD and E-Sealing (Theft Control) Systems, Data Management Solutions including Tacking, Mapping, Geo-Fencing, Alarm-Mailing, etc.
Especially Mineraloil-, Petrochemical- and Chemical Companies are well known for being ahead in environmental thinking and focus on comprehensive and sophisticated, as well as technically high quality solutions.
That is the reason why more and more following a strategy of safety and efficiency in the loading and unloading processes and using our wireless Dead-Man systems, Overfill Prevention Systems and Cross-Fill-Prevention Systems and have already implemented these kind of solutions in their loading terminals, tanker-trucks and fuel stations.
They are already taking profit of having control over their loading and unloading processes and complete logistic chain and - together with their outsourced fleets from the hauliers - protecting their workflow against overspills and cross-fills, saving a lot of money and time as well as protecting the environment and their own brand reputation.
The different systems on petrol-stations, tanker-trucks, loading terminals can be adapted to customer and local requirements.
Wireless DEAD MAN Controls
The use of deadman devices when loading and unloading products reliably prevents overfilling or other potential dangers. This increases the safety and performance of tank truck vehicles or other facilities.
Additionally to the emergency stop and automatic stop possibilities the ATEX approved LRC Small/Remote Dead Man System offers the possibility of rotational speed control, fill process interruptions and starting or use of outputs for other purposes. The LRC-Small/Remote is battery operated with an ATEX approved battery-package and the system has a wide and safe radio range. Experience with the system on the market since 20 years with around 5000 installations worldwide.
Pictured: Dead Man controls in LPG tanker truck | Dead Man controls in ship loading facilities | Dead Man controls in Ammonia trailer

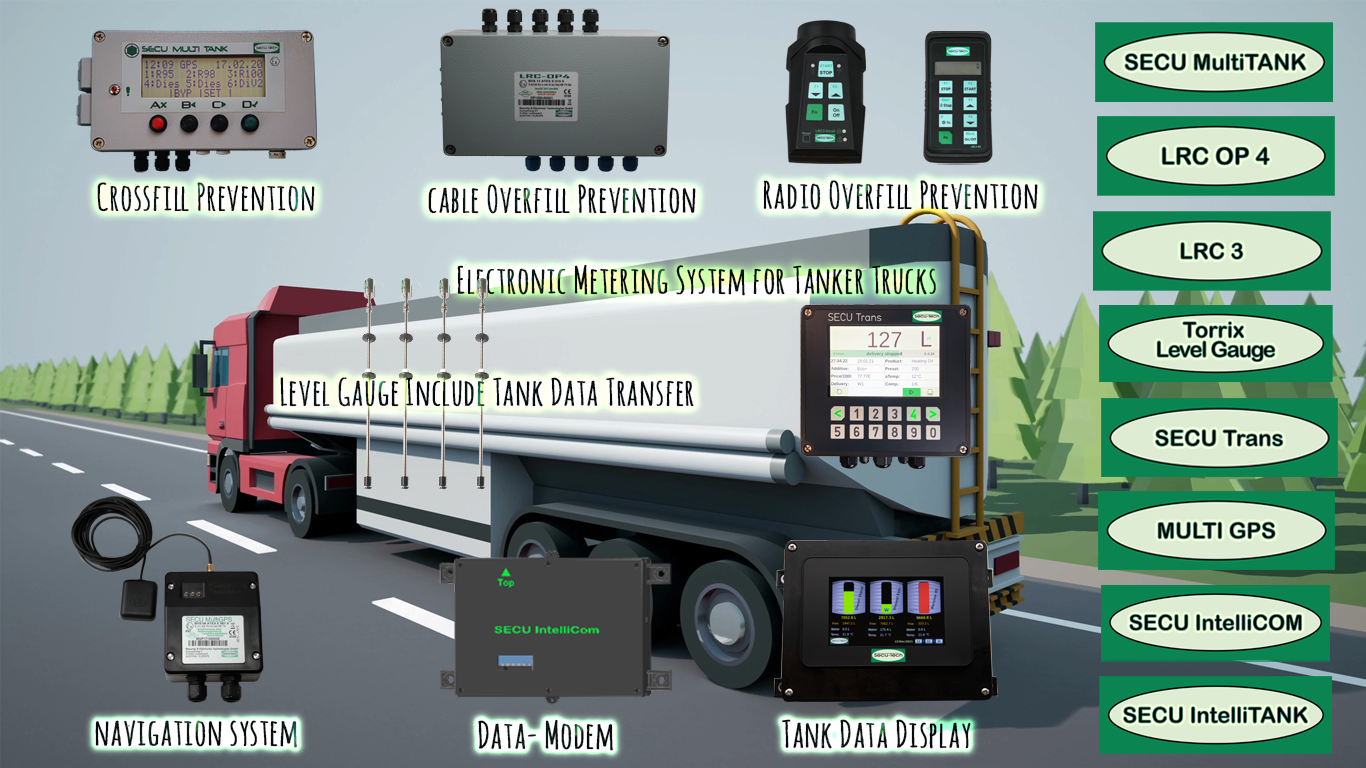

Crossfill Prevention, Overfill Prevention, Theft Control, Tracking/Mapping/Geofencing
SECU MultiTank is the complete and comprehensive solution for safe and efficient fuel distribution covering automated and electronic Crossfill Prevention, Overfill Prevention, Theft Control with Tracking/Mapping/Geofencing and Alarm Mailing.
Next to the importance that product mix into compartments of tanker-trucks and into fuel-stations need to be avoided, the control of the product during transport, to be sure, that the exact amount and quality what has being loaded at the depot arrives at the fuel station, becomes more and more important. Combined with a comprehensive data-management informations of the complete logistic chain is provided in real-time and location for mineral-oil companies and hauliers.
01 / 2020
Security & Electronic Technologies GmbH (SECU-TECH) is a global supplier for systems and solutions for safe and efficient fuel distribution focusing on electronic Overfill Prevention Systems, Cross-Fill-Prevention Systems, SPD and E-Sealing (Theft Control) Systems, Dead-Man-Systems, Data Management Solutions including Tacking, Mapping, Geo-Fencing, Alarm-Mailing, etc.
HMK Bilcon Aalborg / Dänemark
Technical Product – Training in Leobersdorf
Secu-Tech welcomed technical staff from HMK Bilcon Aalborg/Denmark for technical product trainings at Secu-Tech on 13th and 14th February 2019. All products and solutions for tanker-trucks have been trained by our Product Manager – Eng. Herbert Heissenberger. All important product news have been discussed added by application examples. The pictures shows the hand-over of the certificate „Certified and Trained Partner from Secu-Tech“ by our Product Manager to the participants of the training.
